AVQ-CN150-ATX

Canopy luminaire with ATEX configuration

European brandPremium lightingMinimum 10-year luminaire warrantyLatin America support

Professional ARVENQ solution based on a specialized OEM platform, configured under a European premium lighting brand for outdoor and infrastructure projects. Final options depend on the selected power, optics, driver, control and certification.

Power: 80–150 W
Efficacy: 155–165 lm/W
Protection: IP66 · IK08 / IK10
CCT: 3000 / 4000 / 5000 / 5700 K
Control: Photocell, DALI, 1–10 V and motion sensor

GET A WHATSAPP QUOTE

Description

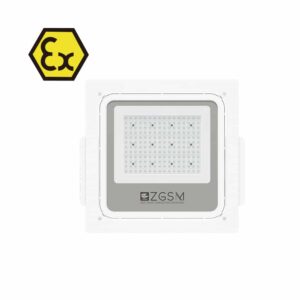

Professional canopy luminaire available in ATEX configuration.

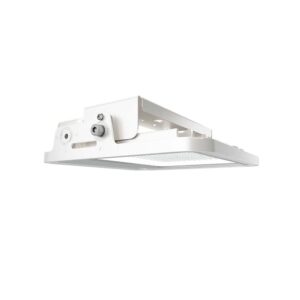

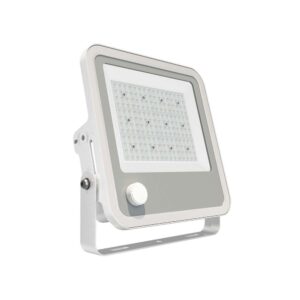

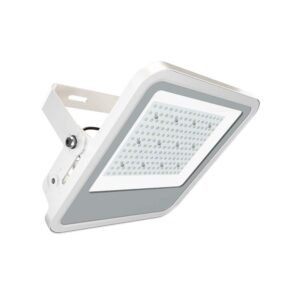

Compact body, tempered glass and recessed/surface or bracket mounting.

Published data correspond to the reference technical platform for this family. The final ARVENQ configuration is confirmed in the quotation, technical data sheet and documentation supplied for each project.

Technical data

ARVENQ model	AVQ-CN150-ATX
Power	80–150 W
Efficacy	155–165 lm/W
Input voltage	100–240/277 VAC, 50/60 Hz
Power factor	>0,95
IP rating	IP66
IK rating	IK08 / IK10
CCT	3000 / 4000 / 5000 / 5700 K
CRI	Ra >70; Ra >80 depending on configuration
Material / construction	Die-cast aluminium and tempered glass
Surge protection	10 kV integrated; SPD additional on request
Operating temperature	-40 °C to +50 °C
Optics / distribution	60° / 90° / 120°
Mounting	Superficie, recessed or bracket
Service life	Up to 100.000 h depending on configuration
Warranty	Minimum 10 years
Control	Photocell, DALI, 1–10 V and motion sensor
Certifications / tests	CE, CB, RoHS, ATEX depending on version, LM79, LM80, TM-21 and IEC62471/62778

Optic

Distribution: 60° / 90° / 120°
Mounting: Superficie, recessed or bracket
IES/LDT photometric files are published or supplied only for the exact selected configuration.

Videos

Videos are shown only when validated technical material exists for this model or configuration. Generic videos are not presented as if they belonged to the product.

Downloads

The ARVENQ technical data sheet, manual, IES/LDT files, certificates and CAD/BIM files are enabled only when they correspond to the exact configuration offered. Draft files or documents from another variant are not published.

Application

Service stations, canopies and areas with special safety requirements.

FAQ

What power range does this model have?
80–150 W.

What optics and mounting options are available?
60° / 90° / 120°. Mounting: Superficie, recessed or bracket.

Does it support dimming or smart control?
Photocell, DALI, 1–10 V and motion sensor.

Can IES/LDT files be requested?
Yes. They are supplied for the exact selected photometric configuration.

Are certifications the same for every variant?
Not necessarily. Applicable documentation is confirmed for the power, driver, optics and final supplied configuration.

Certifications and tests

CE, CB, RoHS, ATEX depending on version, LM79, LM80, TM-21 and IEC62471/62778

Certifications and tests are linked to the specific technical configuration. ARVENQ does not attribute to one variant certificates that apply only to another version of the platform.

Request solutions and quotations

We can assist with luminaire selection, lighting design, technical support, project documentation and product configuration.
