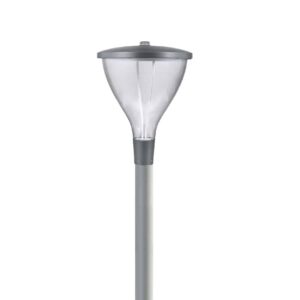

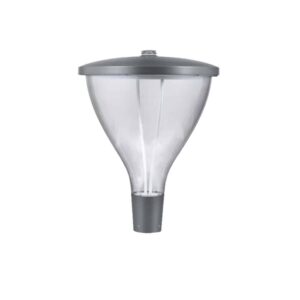

Urban post-top lamp
Professional ARVENQ solution based on a specialized OEM platform, configured under a European premium lighting brand for outdoor and infrastructure projects. Final options depend on the selected power, optics, driver, control and certification.
- Power: 40 / 60 / 80 / 100 W
- Efficacy: 135–150 lm/W
- Protection: IP66 · IK08
- CCT: Configurable depending on proyecto
- Control: DALI, 0/1–10 V, time scheduling, LoRa or Zigbee
Description
Urban post-top prepared for dimming and future smart-control functions.
Clear diffuser, high-efficiency driver and symmetric/asymmetric optics.
Technical data
| ARVENQ model | AVQ-GD100-P4 |
| Power | 40 / 60 / 80 / 100 W |
| Efficacy | 135–150 lm/W |
| Input voltage | 100–240/277 VAC, 50/60 Hz |
| Power factor | >0,95 |
| IP rating | IP66 |
| IK rating | IK08 |
| CCT | Configurable depending on proyecto |
| CRI | Configurable depending on proyecto |
| Material / construction | Housing completa de aluminium ADC12 fundido a presión |
| Surge protection | 10 kV standard; 20 kV on request |
| Operating temperature | Uso exterior; confirmar rango de la configuration seleccionada |
| Optics / distribution | Type I, II, III, V or personalizada |
| Mounting | Post-top |
| Service life | LED long-life; confirmar valor L70/TM-21 de la configuration |
| Warranty | Minimum 10 years |
| Control | DALI, 0/1–10 V, time scheduling, LoRa or Zigbee |
| Certifications / tests | CE, RoHS, IP66, LM80, TM-21 and IEC62471 |
Optic
Distribution: Type I, II, III, V or personalizada
Mounting: Post-top
IES/LDT photometric files are published or supplied only for the exact selected configuration.
Videos
Videos are shown only when validated technical material exists for this model or configuration. Generic videos are not presented as if they belonged to the product.
Downloads
The ARVENQ technical data sheet, manual, IES/LDT files, certificates and CAD/BIM files are enabled only when they correspond to the exact configuration offered. Draft files or documents from another variant are not published.
Application
Parques, plazas, zonas residenciales, parking areas and vías peatonales.
FAQ
What power range does this model have?
40 / 60 / 80 / 100 W.
What optics and mounting options are available?
Type I, II, III, V or personalizada. Mounting: Post-top.
Does it support dimming or smart control?
DALI, 0/1–10 V, time scheduling, LoRa or Zigbee.
Can IES/LDT files be requested?
Yes. They are supplied for the exact selected photometric configuration.
Are certifications the same for every variant?
Not necessarily. Applicable documentation is confirmed for the power, driver, optics and final supplied configuration.
Related products
Certifications and tests
CE, RoHS, IP66, LM80, TM-21 and IEC62471
Certifications and tests are linked to the specific technical configuration. ARVENQ does not attribute to one variant certificates that apply only to another version of the platform.
