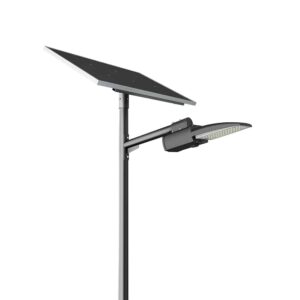

Smart all-in-two solar street light
Professional ARVENQ solution based on a specialized OEM platform, configured under a European premium lighting brand for outdoor and infrastructure projects. Final options depend on the selected power, optics, driver, control and certification.
- Power: 30–80 W
- Efficacy: Up to 210 lm/W
- Protection: IP66 · IK10
- CCT: Depending on configuration
- Control: MPPT, motion sensor/PIR, time scheduling, daylight sensor and comunicación 2,4 GHz depending on version
Description

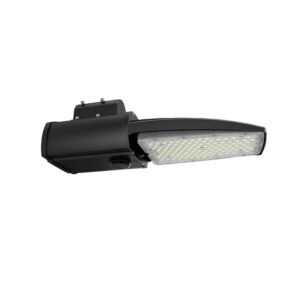

All-in-two solar system with separate panel and a head integrating battery, controller and LED.
Plug-and-play connector, MPPT controller with up to 96% charging efficiency and smart battery management.
Technical data
| ARVENQ model | AVQ-SL120-AIT |
| Power | 30–80 W |
| Efficacy | Up to 210 lm/W |
| Input voltage | DC 12/24 V |
| Power factor | Not applicable en alimentación DC del sistema solar |
| IP rating | IP66 |
| IK rating | IK10 |
| CCT | Depending on configuration |
| CRI | Ra >70; Ra >80 depending on configuration |
| Material / construction | Head LED de aluminium, monocrystalline panel and sistema de almacenamiento/control depending on platform |
| Surge protection | Integrated protections en controller |
| Operating temperature | Depending on configuration |
| Optics / distribution | Type II |
| Mounting | Side entry |
| Service life | LiFePO4 battery long-life depending on configuration |
| Battery | 307–768 Wh |

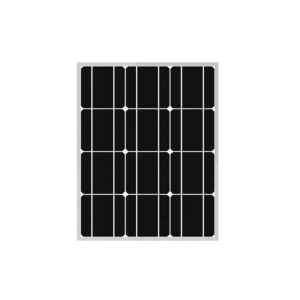

| Solar panel | Monocrystalline 60 / 80 / 100 / 120 / 150 / 160 W |
| Warranty | Minimum 10 years |
| Control | MPPT, motion sensor/PIR, time scheduling, daylight sensor and comunicación 2,4 GHz depending on version |
| Certifications / tests | CE, IEC, RoHS, LM79, IP66, IK10, LM80, TM-21 and IEC62471 |
Optic
Distribution: Type II
Mounting: Side entry
IES/LDT photometric files are published or supplied only for the exact selected configuration.
Videos
Videos are shown only when validated technical material exists for this model or configuration. Generic videos are not presented as if they belonged to the product.
Downloads
The ARVENQ technical data sheet, manual, IES/LDT files, certificates and CAD/BIM files are enabled only when they correspond to the exact configuration offered. Draft files or documents from another variant are not published.
Application
Streets, roads, parks, parking areas and locations without a stable electrical grid.
FAQ
What power range does this model have?
30–80 W.
What optics and mounting options are available?
Type II. Mounting: Side entry.
Does it support dimming or smart control?
MPPT, motion sensor/PIR, time scheduling, daylight sensor and comunicación 2,4 GHz depending on version.
Can IES/LDT files be requested?
Yes. They are supplied for the exact selected photometric configuration.
Are certifications the same for every variant?
Not necessarily. Applicable documentation is confirmed for the power, driver, optics and final supplied configuration.
Related products
Certifications and tests
CE, IEC, RoHS, LM79, IP66, IK10, LM80, TM-21 and IEC62471
Certifications and tests are linked to the specific technical configuration. ARVENQ does not attribute to one variant certificates that apply only to another version of the platform.
