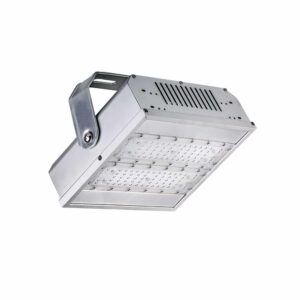

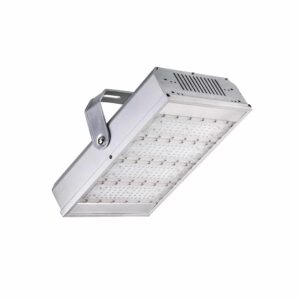

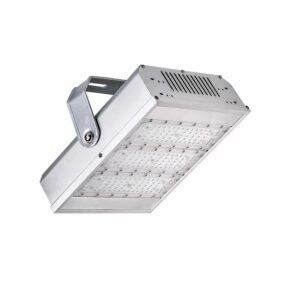

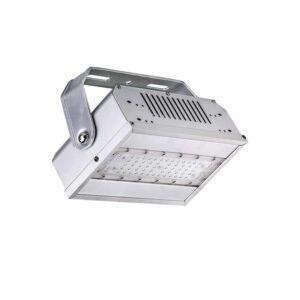

AVQ-TN300-A

Modular LED tunnel luminaire

European brandPremium lightingMinimum 10-year luminaire warrantyLatin America support

Professional ARVENQ solution based on a specialized OEM platform, configured under a European premium lighting brand for outdoor and infrastructure projects. Final options depend on the selected power, optics, driver, control and certification.

Power: 40–240 W
Efficacy: 125–165 lm/W
Protection: IP66 · IK10
CCT: 3000 / 4000 / 5000 / 5700 K
Control: Photocell, DALI, 1–10 V, motion sensor, Zigbee or LoRa

GET A WHATSAPP QUOTE

Description

Highly robust, easy-maintenance modular luminaire for tunnels and infrastructure.

Replaceable modules, adjustable bracket and optics for different tunnel zones.

Published data correspond to the reference technical platform for this family. The final ARVENQ configuration is confirmed in the quotation, technical data sheet and documentation supplied for each project.

Technical data

ARVENQ model	AVQ-TN300-A
Power	40–240 W
Efficacy	125–165 lm/W
Input voltage	100–240/277 VAC, 50/60 Hz
Power factor	>0,95
IP rating	IP66
IK rating	IK10
CCT	3000 / 4000 / 5000 / 5700 K
CRI	Ra >70; Ra >80 depending on configuration
Material / construction	Housing de aluminium de bajo contenido de cobre with tratamiento superficial
Surge protection	10 kV integrated; SPD additional on request
Operating temperature	-40 °C to +50 °C
Optics / distribution	Type I, II, III and V
Mounting	Support ajustable for pared or techo
Service life	According to documented configuration
Warranty	Minimum 10 years
Control	Photocell, DALI, 1–10 V, motion sensor, Zigbee or LoRa
Certifications / tests	CE, CB, RoHS, LM80, TM-21, ISTMT and IEC62471/62778 depending on configuration

Optic

Distribution: Type I, II, III and V
Mounting: Support ajustable for pared or techo
IES/LDT photometric files are published or supplied only for the exact selected configuration.

Videos

Videos are shown only when validated technical material exists for this model or configuration. Generic videos are not presented as if they belonged to the product.

Downloads

The ARVENQ technical data sheet, manual, IES/LDT files, certificates and CAD/BIM files are enabled only when they correspond to the exact configuration offered. Draft files or documents from another variant are not published.

Application

Road tunnels, underpasses, railway infrastructure and areas beneath bridges.

FAQ

What power range does this model have?
40–240 W.

What optics and mounting options are available?
Type I, II, III and V. Mounting: Support ajustable for pared or techo.

Does it support dimming or smart control?
Photocell, DALI, 1–10 V, motion sensor, Zigbee or LoRa.

Can IES/LDT files be requested?
Yes. They are supplied for the exact selected photometric configuration.

Are certifications the same for every variant?
Not necessarily. Applicable documentation is confirmed for the power, driver, optics and final supplied configuration.

Certifications and tests

CE, CB, RoHS, LM80, TM-21, ISTMT and IEC62471/62778 depending on configuration

Certifications and tests are linked to the specific technical configuration. ARVENQ does not attribute to one variant certificates that apply only to another version of the platform.
