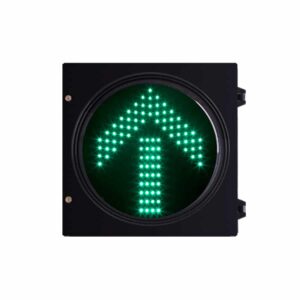

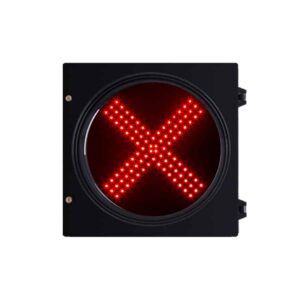

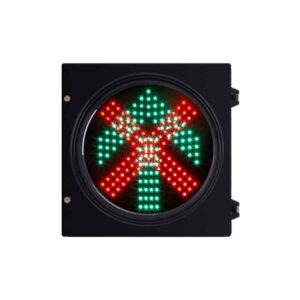

LED lane-control signal
Professional ARVENQ solution based on a specialized OEM platform, configured under a European premium lighting brand for outdoor and infrastructure projects. Final options depend on the selected power, optics, driver, control and certification.
- Diameter / format: Ø200 / 300 / 400 / 600 mm depending on version
- Light source: High-intensity LED
- Protection: IP54 · Not specified by the platform
- CCT: Red / green signal
- Control: Signal control / remote control depending on system
Description
LED lane-control signal for dynamic traffic management.
Constant-current driver, low power consumption and sealed water-resistant modules.
Technical data
| ARVENQ model | AVQ-TS-LC |
| Diameter / format | Ø200 / 300 / 400 / 600 mm depending on version |
| Light source | High-intensity LED |
| Input voltage | 100–240/277 VAC, 50/60 Hz |
| Power factor | >0,90 |
| IP rating | IP54 |
| IK rating | Not specified by the platform |
| CCT | Red / green signal |
| CRI | Not applicable |
| Material / construction | Flame-retardant, UV-resistant housing |
| Surge protection | Depending on controller configuration |
| Operating temperature | -40 °C to +75 °C |
| Optics / distribution | Viewing angle <30°; visible range up to 200 m / visibility >500 m depending on conditions |
| Mounting | Traffic-signal mounting |
| Service life | LED de larga vida; depending on module/configuration |
| Warranty | 1 year |
| Control | Signal control / remote control depending on system |
| Certifications / tests | CE, RoHS; EN50293:2000 and EN12368:2006 depending on configuration |
Optic
Distribution: Viewing angle <30°; visible range up to 200 m / visibility >500 m depending on conditions
Mounting: Traffic-signal mounting
IES/LDT photometric files are published or supplied only for the exact selected configuration.
Videos
Videos are shown only when validated technical material exists for this model or configuration. Generic videos are not presented as if they belonged to the product.
Downloads
The ARVENQ technical data sheet, manual, IES/LDT files, certificates and CAD/BIM files are enabled only when they correspond to the exact configuration offered. Draft files or documents from another variant are not published.
Application
Lane control, tunnels, toll areas and vehicle-flow management.
FAQ
What power range does this model have?
Ø200 / 300 / 400 / 600 mm depending on version.
What optics and mounting options are available?
Viewing angle <30°; visible range up to 200 m / visibility >500 m depending on conditions. Mounting: Traffic-signal mounting.
Does it support dimming or smart control?
Signal control / remote control depending on system.
Can IES/LDT files be requested?
Yes. They are supplied for the exact selected photometric configuration.
Are certifications the same for every variant?
Not necessarily. Applicable documentation is confirmed for the power, driver, optics and final supplied configuration.
Related products
Certifications and tests
CE, RoHS; EN50293:2000 and EN12368:2006 depending on configuration
Certifications and tests are linked to the specific technical configuration. ARVENQ does not attribute to one variant certificates that apply only to another version of the platform.
