Flexible-mount pendant street light
Professional ARVENQ solution based on a specialized OEM platform, configured under a European premium lighting brand for outdoor and infrastructure projects. Final options depend on the selected power, optics, driver, control and certification.
- Power: 27–120 W
- Efficacy: 125–155 lm/W
- Protection: IP66 · IK08 / IK10
- CCT: 3000 / 4000 / 5000 / 5700 K
- Control: Photocell, DALI, 1–10 V, NEMA, Zhaga, motion sensor, time scheduling, Zigbee or LoRa
Description

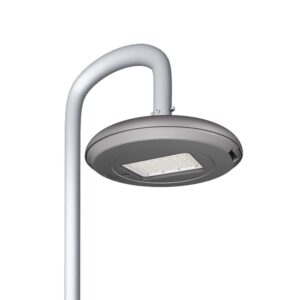

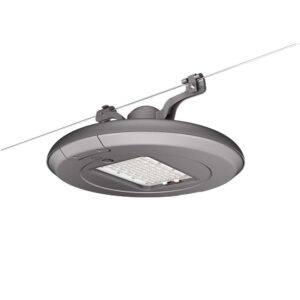

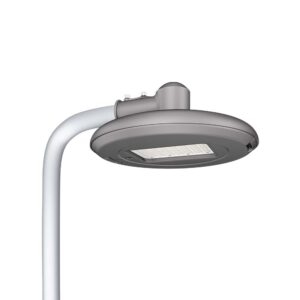

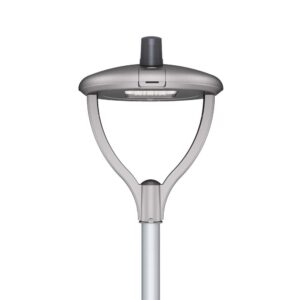

European-inspired solution for pendant, suspended or post-top installation, suitable for urban centers and historic areas.
Tool-free opening, multiple installation methods and more than six available optical distributions.
Technical data
| ARVENQ model | AVQ-UR120-B |
| Power | 27–120 W |
| Efficacy | 125–155 lm/W |
| Input voltage | 100–240/277 VAC, 50/60 Hz |
| Power factor | >0,95 |
| IP rating | IP66 |
| IK rating | IK08 / IK10 |
| CCT | 3000 / 4000 / 5000 / 5700 K |
| CRI | Ra >70; Ra >80 depending on configuration |
| Material / construction | Die-cast aluminium housing; PC optic or tempered glass depending on platform |
| Surge protection | 10 kV standard; 20 kV on request |
| Operating temperature | -40 °C to +50 °C |
| Optics / distribution | Type I, II, III and V |
| Mounting | Post-top, entrada lateral, pendant or suspended |
| Service life | L70 >100.000 h in documented platform configurations |
| Warranty | Minimum 10 years |
| Control | Photocell, DALI, 1–10 V, NEMA, Zhaga, motion sensor, time scheduling, Zigbee or LoRa |
| Certifications / tests | ENEC, CE, CB, Zhaga-D4i, RoHS, LM79, LM80, LM82, LM84, TM-21, ISTMT and IEC62471/62778 depending on configuration |
Optic
Distribution: Type I, II, III and V
Mounting: Post-top, entrada lateral, pendant or suspended
IES/LDT photometric files are published or supplied only for the exact selected configuration.
Videos
Videos are shown only when validated technical material exists for this model or configuration. Generic videos are not presented as if they belonged to the product.
Downloads
The ARVENQ technical data sheet, manual, IES/LDT files, certificates and CAD/BIM files are enabled only when they correspond to the exact configuration offered. Draft files or documents from another variant are not published.
Application
Streets, avenues, highways, parking areas, residential zones and outdoor areas.
FAQ
What power range does this model have?
27–120 W.
What optics and mounting options are available?
Type I, II, III and V. Mounting: Post-top, entrada lateral, pendant or suspended.
Does it support dimming or smart control?
Photocell, DALI, 1–10 V, NEMA, Zhaga, motion sensor, time scheduling, Zigbee or LoRa.
Can IES/LDT files be requested?
Yes. They are supplied for the exact selected photometric configuration.
Are certifications the same for every variant?
Not necessarily. Applicable documentation is confirmed for the power, driver, optics and final supplied configuration.
Related products
Certifications and tests
ENEC, CE, CB, Zhaga-D4i, RoHS, LM79, LM80, LM82, LM84, TM-21, ISTMT and IEC62471/62778 depending on configuration
Certifications and tests are linked to the specific technical configuration. ARVENQ does not attribute to one variant certificates that apply only to another version of the platform.
